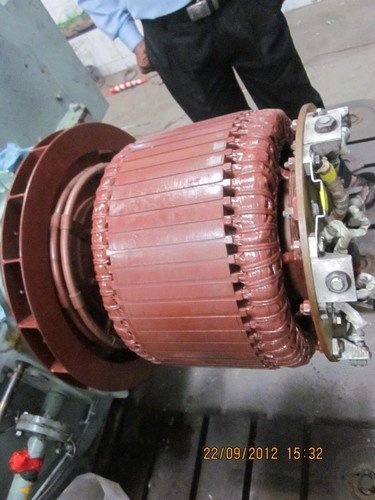

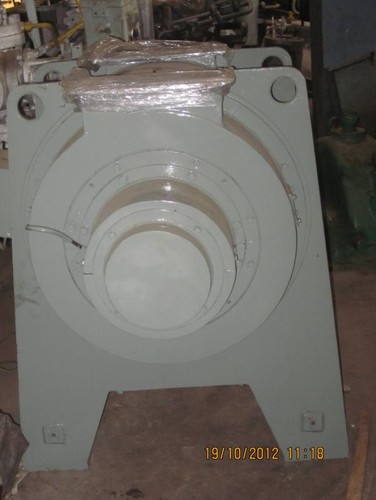

5000kVA TDPS - SEIZO Alternator 50Hz

MFG: TD Power Systems (TDPS) in collaboration with SEIZO, Japan.
Capacity : 5000 kVA
Year of make : 2007
Type : TC 110
Speed : 1500 RPM
Limited Speed : 1800 RPM
Voltage : 6.6 kV
No.of phase : 3
No. of Poles : 4
Voltage : 6600V
Amps. : 437A
Cycle : 50 Hz.
P.F. : 0.8
Connection : Star
Insulation class : F
Excitation Voltage: 197 V
Excitation Current: 243 A
Enclosure : IP54
Cooling System : IC6A1W7

NOTE:

The above Alternator is in Excellent Condition & can be presently inspected in India. The Alternator has been completely overhauled and tested & test reports for the same are also available. Running Trial for the alternator at 1500RPM, 6.6kV was also done and the videos for the same are also available.
