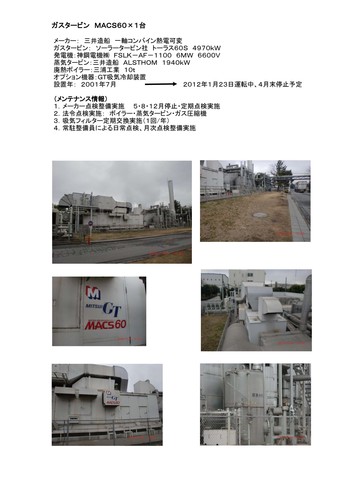

TAURUS 60S 7MW combined cycle plant

Part No: TAURUS 60S CHP Japan
ANTONI No: TAURUS 60S CHP ( AN / GR )
Model: TAURUS 60S

please click on images on the right for additional pictures

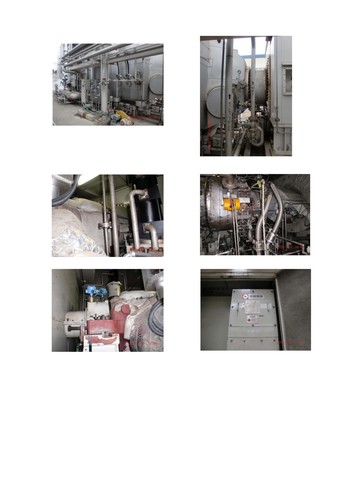

Used SOLAR TURBINES TAURUS 60S   7 MW Combined cycle plant for
sale

Location
Japan
2001

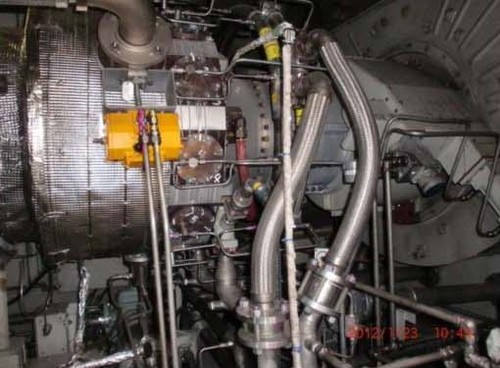

Solar Taurus60S  4970kw (Packaged by Mitsui
Zosen)

　　Natural gas burning  with gas compressor.
 Maintenance Details:

Manufacturer’s Maintenance :  Every year May, Aug, and
December
  for the boiler, steam turbine, and gas compressor
  Absorption
Filter Regular Maintenance (Once a year)
The package total about 63,000 hrs
Engine hrs 24,000 since last replacement in 2010



Generator 50Hz(Shinko ),6600kv

GENERATOR PART  : SHINKO   FSLK-AF-1100 6000KW  6600VO 50HZ 1500 ROPM
4 POLE
3PHASE
MAX. OUT PUT  7480KW
EXITING UNIT OUTPUT 36KW
   VOLTAGE  80VOLT
   CURRENCY  450AMP
    BRUSHLESS EXTING TYPE
   EXITING VOLT  50V,  CURRENCY
6.5 AMP
   YEAR 2000 DEC.
GENERATOR WEIGHT 16.3
TON
                    GENERATOR   SHINKO  FSLK-AF-1100 6MW
6600V

　　
HRSG :
10t/h MIURA HEAT RECOVERY BOILER NATURAL CIRCULATION WATER PIPE BOILER(OUT DOOR
TYPE)
MAX. STEAM CAPACITY
10.2 T./HOUR
MAX. USING
PRESSURE 2,350 KPA (GAGE PRESSURE)
MAX. .USING TEMPERATURE  425
DEG.C (HEATER)
                               253 DEG.C(STEAM
UNIT,

Steam turbine generator
1940kw( Alsthom)
MITSUI ALSTOM STEAM TURBINE  CD3.7
1970KW  (O DEG.C)
  MAIN INLET PRESSURE
1.86 MPA(GAGE PRESSURE)
MAIN
INLET TEMPERATURE 345DEG.C
EXHAUST  PRESSURE 4.9KPaA(FIXED
PRESURE)
RPM  10920 RPM
FIRST CRITICAL SPEED 4300 RPM
2ND CRITICAL SPEED 21000
RPM
TURING DIRECTION CLOCK
TURN FROM HIGH PRESSURE
PRODUCTION YEAR  2001 MAY
WEIGHT  5000 KGS

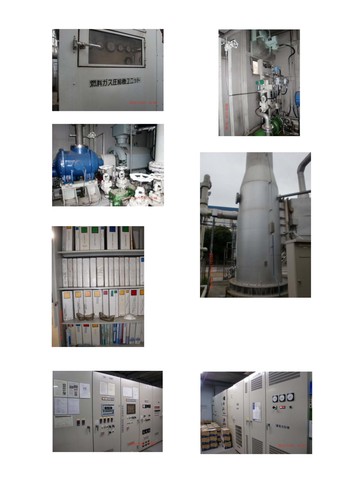

Gas Booster
compressor.
GAS COMPRESSOR
HOWDEN NO. JOO595
HYDRAULIC
TEST PRESSURE 42.  BAR.G
MAX.
WORKING PRESSURE  HIGH SIDE 24.1 BAR.G
                            LOW
SIDE 5.5 BAR.G
MAX.
SPEED         4500 RPM

  Absorption chiller for GT intake air
cooling
