DRESSER RAND TERRY STEAM TUBRINE 9495HP 7100KW UNUSED

Part No: DRESSER RAND TERRY STEAM TUBRINE 9495HP 7100KW
ANTONI No: DRESSER RAND TERRY STEAM TUBRINE 9495HP 7100KW ( AN/RC )



FOR SALE – UNUSED

Unused 9495 HP
(7100 KW) DRESSER RAND STEAM TURBINE
COND.

400 psig @
720°F, 2.5" HG ABS

w/7571 Sq Ft
Graham Condenser

Year 1991  –  1993

(One)

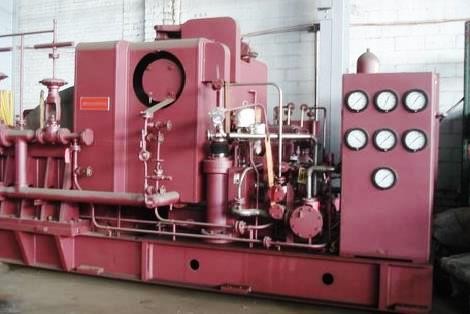

unused 9495 HP (7100KW) Dresser-Rand (Terry) condensing steam turbine, 400 psig
@ 720°F, with 2.5” HG ABS exhaust.
Max throttle flow 80,637#/Hr, 8000 RPM. Model 5QT, multi-stage, multi-valve Equipped with
Woodward 505 electronic governor.
8" inlet at 600# ,48" rectangular outlet @ 150# FF down,

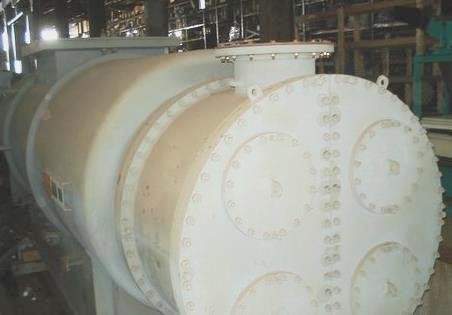

rotation C.W. 7,571 sq. ft. Graham (Job #91863M) surface condenser, inlet
pressure 2.5" HG ABS, 63,763#/Hr.
Size: 68" x 240" HEI.  Carbon steel shell composed of 1,928  ¾"OD Admiralty Brass tubes, 16-gauge,
(AVG).  ASME Code stamped.  Dimensions: 5′-8" OD x 28’L. Equipped
with hogging air chamber and ejector steam nozzles.  Manufactured 1991/93.

Weights:                   Turbine –
30,830 lbs

                                    Spare Turbine Rotor – 3,053 lbs

                                    Turbine & Compressor Weight:  87,100 lbs.



Dimensions:      26’L x 7′-1"W x 12’H
Mounted on Structural
Steel Base with unused 23,288CFM@250 psia Wet gas centrifugal compressor (at
additional cost)
