COPPUS RLA23E steam turbine unused

Part No: COPPUS RLA23E unused

ANTONI No: COPPUS RLA23E (AN/RC )

Model: RLA23E

For Sale One

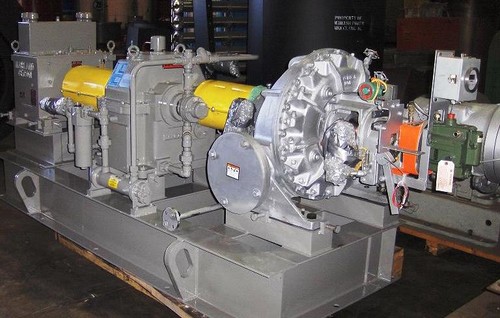

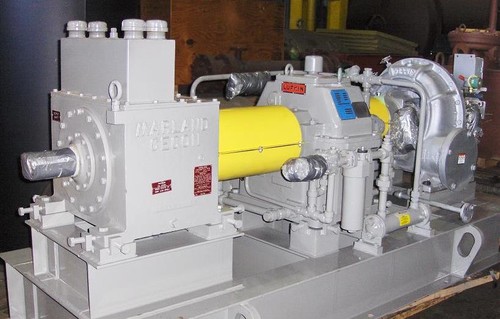

(1) unused 2007 COPPUS RLA23E Steam Turbine 800HP

Non-Condensing
Turbine with Lufkin
Gear Reducer. All mounted on common
structural steel base with Marland Clutch and Oil Cooler.

Turbine Specifications Gear Specifications

Serial
No. 06T7856 Manufacturer Lufkin

H.P. 800HP Serial
No. 119735

Inlet
Pressure 493/544
psig H.P. 800

Inlet
Temperature 504°F Service
Factor 1.87

Trip
Speed 4,127 RPM Pinion
RPM 3558

Maximum
RPM 3,558 RPM Form AGMA#3

Form RLA23E Ratio 2.022:1

RPM 3558/1760 Gear RPM 1760

Exhaust
Pressure 55 psig

Exhaust
Temperature 400°F

Steam
Rate 26.2 #/HR Governor Specifications

Inlet 4” @
600# Flange

Exhaust 8” @ 150#
Flange Manufacturer Woodward

Serial
No. 15363644

Type Electric/Hydraulic

Built July 2007
