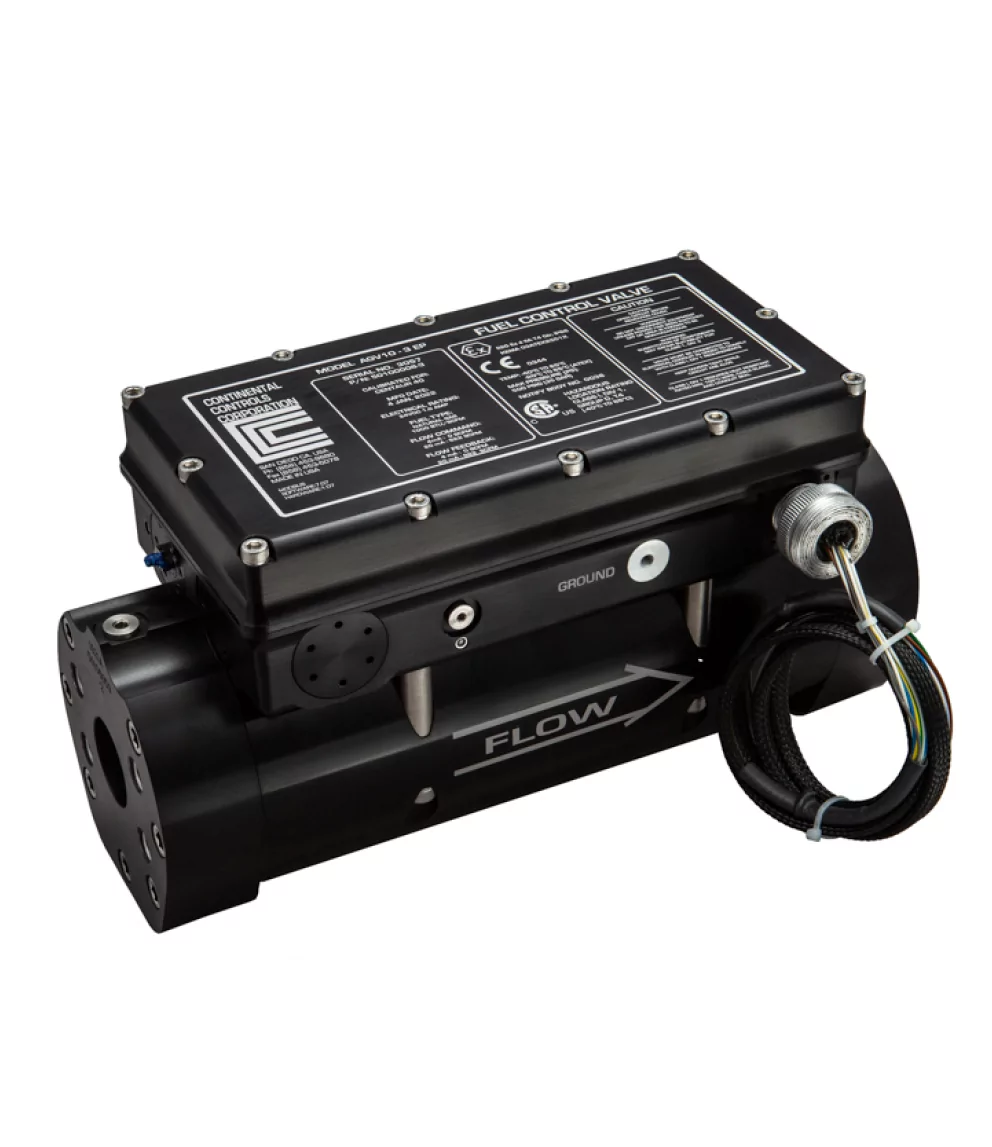

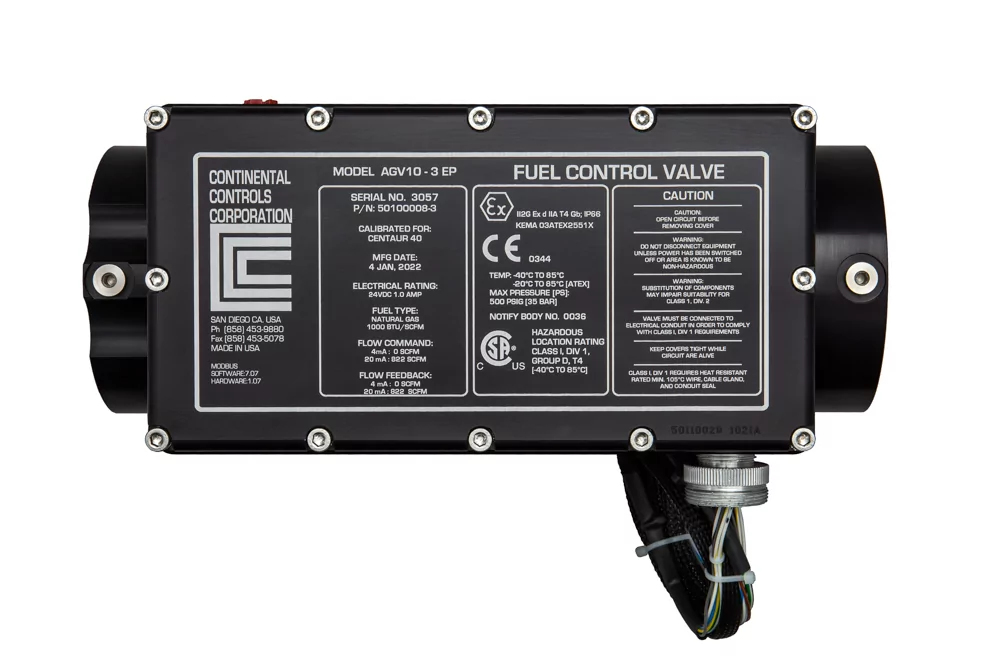

AGV10

Call for the latest pricing

Used to accurately meter gaseous fuel to gas turbine engines from 850–5,800hp, it’s the ideal interface between the control system and the gas turbine engine.

• AGV valves are linear, making them easier to control
• Closed loop on flow resulting in more repeatable starts
• Unaffected by changes in pressure or temperature
• True mass flow calculation that is temperature compensated
• Maintains flow accuracy within a 2% range
• Low 24VDC power: less than 1 amp of power required
• Robust design. High dirt tolerance makes it one of the most reliable valves on the market

Product Weight (lbs): 31.8

Length (Inches): 13.9

Width (Inches): 5.8

Height (Inches): 7.6

The AGV10 Valve is used to meter gas fuel to gas turbine engines in the horsepower range of 850HP to 5000HP, with only minor differences within the valve models to accommodate the range in flow. The valve has been designed to provide an optimum interface between a PLC Control system and gas turbine engine. The valve control is linear, in that the material fuel flow is proportional to the 4-20 mA fuel demand signal from the PLC. The valve has exceptionally fast response and provides outstanding transient performance when used in a generator application. It also provides superior turbine performance in any mechanical drive application. The high accuracy of the valve in the start fuel range assures the engine will have excellent light-off and consistent starting characteristics. The use of the valve greatly simplifies the on-skid gas system plumbing and wiring.
