81.3 MW Heavy Fuel Based, 5 X 16 MW Wartsila 18V46

 SOLD

81.3 (5 X 16.26) MW Heavy Fuel
based, DG Power Plant in excellent operating condition is for sale.  The operating assets would comprise of the
main power plant, the balance of plant equipment, fuel tankages, switchyard
equipment and associated auxiliaries

Key Features:

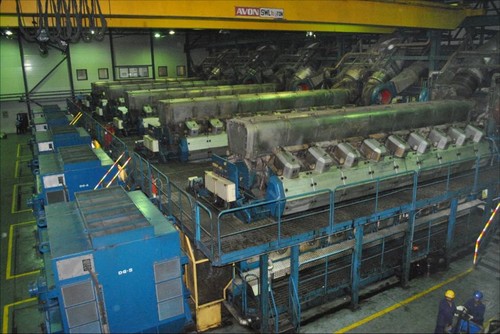

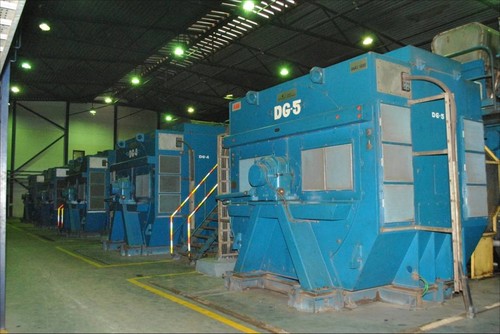

Available five sets of
Wartsila make 18V46 Engines of capacity 16.26 MW each, dovetailed with PLC

based condition monitoring and
equipment protection system.

Power is generated at 11kV at the
generator terminals and is presently stepped up to 110 kV by two 58 MVA

transformers and evacuated by two
110 kV transmission lines.

Major Equipment

PLANT MAIN EQU IPMENT DETAILS

1. Diesel Generator Set

a. Diesel Engine Technical
Specifications Engine Type 18V46

Year of Manufacturing 1999

Output 16763 KW

RPM 500

Direction of Rotation CW

Wartsila NSD Finland, Turku
Factory

b. Alternator Technical
Specifications

Make ABB

Type Synchronous Generator

Model AMG 1600SS12

Rating 19300 KVA

Duty S1, PF-0.85, IC-0A1

Other Technical Details RPM-500
(nr-600), IM-7201

V-11000, IP-23, AMP-1013

IEC-34-1, HZ-50, INSUL-F

Excitor 105V,9.6A, KG-56500

Ambient Temp +50 degree C

Diesel Engine #
Diesel Eng.Sr.#  Running hours    Alternator Sr. No.

                                                            as
on 30.07.2012

Engine No –
1        91150
46,360
4564106

Engine No –
2        91151
43,820
 4564108

Engine No –
3
 91152
43,405
4564107

Engine No –
4        91207                 43,141                     4564104

Engine No –
5       91208
46,136                      45641052.

Major Balance of Equipments at
the Existing Plant Site*

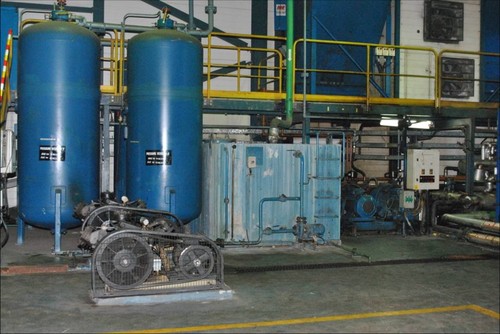

a. Air Compressor (30 bar)

Spherre
 2 in Number

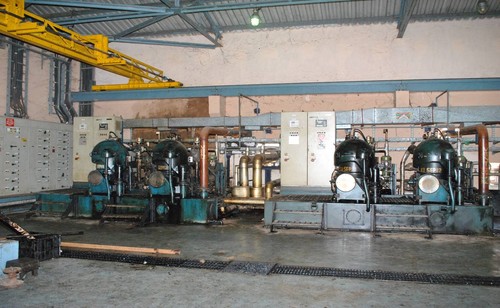

b. HFO Separators

Westfalia            4 in
Number

c. Lube Oil Separators
      Westfalia
       5 in Number

d. Heat Recovery
boilers
Thermax            3 in
Number

e. Oil Fired
Boilers
Thermax            1 in
Number

f. DM
Plant

g. Make Up Water
Pumps
2 in Number

h. Fire Hydrant
Pumps

i. 250 kVA Emergency DG set
Cummins          1 in Number

j. Cooling
Tower

k. Cooling Water
Pumps
                 6 in Number

l. 58 MVA
Transformers                                         2 in
Number

m. Switch Yard Breaker                                        4 in Number

n. 11 kV MV Breakers ABB 6 in Number
