1314 HP Terry non-condensing steam turbine

 for sale

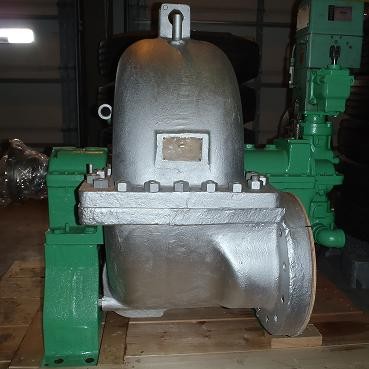

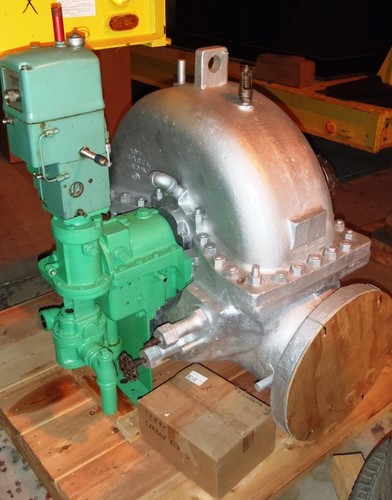

(One) 1314 HP Terry
non-condensing steam turbine Type GABS,

model 40533-A, 300
psi inlet @ 515°F with 150 # BP exhaust,

3800 RPM.  Direct coupled to a Terry reduction gear,
Type U,

3800/1725 RPM.   Manufactured in 1977.  Equipped with governor.

(1) spare rebuilt and balanced rotor

                                                           TERRY STEAM TURBNE

RATING:                                                        1314HP

QUANTITY:                                                   ONE (1)

MODEL/TYPE:                                             GANBS

SERIAL NUMBER:                                      T40533

INLET
PRESSURE:                                    300 PSIG

INLET
TEMPERATURE:                           515°F

EXHAUST PRESSURE:                            150# B.P.

SPEED/RPM:                                                3800

ROTATION FROM
GOVERNOR END:   CW

GOVERNOR:                                               WOODWARD
PG PL

REDUCTION
GEAR:                                  TERRY “U”

                                                                        1725
RPM

                                                                        1977
